Steel Bearings

Dacheng Steel Bearing Assemblies are categorized into two basic designs:
Pot Bearing and Spherical Bearing.




1.Pot Bearing assemblies

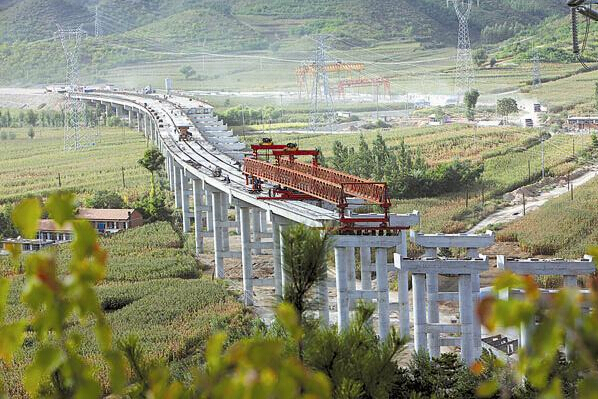

railway pot bearing

Pot bearings are designed to carry combinations of vertical loads, horizontal loads, longitudinal and transversal movements,and rotations.This type of bearing can carry very high loads of over 50,000 kN.Depending on whether the pot bearing is fixed, guided sliding or a free sliding.



highway pot bearingsteel pot bearing
















Types        Types
Of bearing
counterforce
Maximum displacement in direction longitudinal of the bridge (mm) Maximum displacement in transverse direction (mm)
Fixed type Free type Guided type Fixed type Free type Guided type
1000-3000 0 ±50;±100 ±50;±100 0 ±5;±10 0
3500-9000 0 ±100;±150 ±100;±150 0 ±10;±15 0
10000-30000 0 ±150;±200 ±150;±200 0 ±15;±20 0
32500-50000 0 ±200;±250 ±200;±250 0 ±20;±25 0

2.Spherical Bearing assemblies

bridge spherical bearingQZ Spherical bridge bearing is composed by top plate, base plate, convex middle plate and two Teflon plates of different composition. Opposite the top plate, it is a concave spherical in the base plate, and the PTFE plate between them. Beam rotation through spherical surfaces and PTFE plate sliding; stainless steel plate on the top plate and another PTFE plates on the intermediate steel plate perform the second sliding surface, realized beam stretching displacement produced by temperature factors.

QZ Spherical bridge bearing transfers force reliably and rotation performance is consistent.

QZ Spherical bridge bearing has great bearing capacity, large displacement and large turning angles, so it is more suitable for wide bridge and curved bridge. No rubber is used in the QZ Spherical bridge bearing so it never happen that brittle rubber caused by low temperature affecting the bearing rotation, and QZ Spherical bridge bearing is especially suitable for cold areas.
